- General Information
- Manufacturer
- PNY Technologies
- Manufacturer Website Address
- http://www.pny.com
- Brand Name
- PNY
- Product Type
- Graphic Card

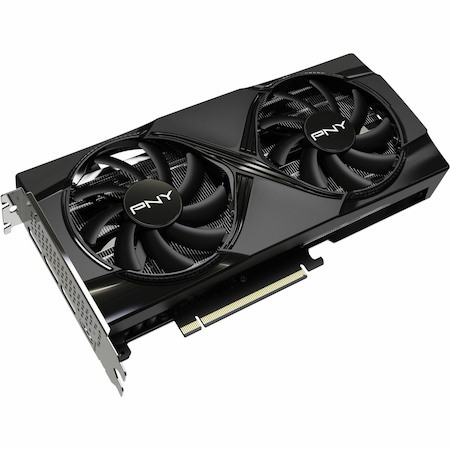

Get game-changing performance with the GeForce RTX™ 5060 Ti 16GB, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
DUAL FAN COOLING
With two fans working together, heat is distributed and dissipated efficiently across a compact design.
METAL BACKPLATE
Adds additional support to prevent the card from sagging and vents that enhance passive cooling
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Number of Monitors Supported
- 4
- Features
- Dual-fan Cooler
- Maximum Digital Display Resolution
- 7680 x 4320
- CUDA Cores
- 4608
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- NVIDIA
- Chipset Line
- GeForce
- Chipset Series
- RTX
- Chipset Model
- RTX 5060 Ti
- GPU Clock
- 2.41 GHz
- GPU Boost Clock
- 2.57 GHz
- Memory
- Standard Memory
- 16 GB
- Memory Technology
- GDDR7
- Bus Width
- 128 bit
- Maximum Memory Bandwidth
- 448 GB/s
- Interfaces/Ports
- Host Interface
- PCI Express 5.0 x8
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 3
- HDMI
- Yes
- Number of HDMI Outputs
- 1
- Power Description
- Power Supply Wattage
- 600 W
- Power Connector
- 1x 8-pin
- Physical Characteristics
- Slot Space Required
- Dual
- Form Factor
- Plug-in Card
- Card Height
- Full-height
- Cooler Type
- Passive Cooler
- Height
- 1.6"
- Width
- 4.7"
- Length
- 9.6"
- Miscellaneous
- Platform Supported
- PC
- Linux
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
