- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Series
- G6

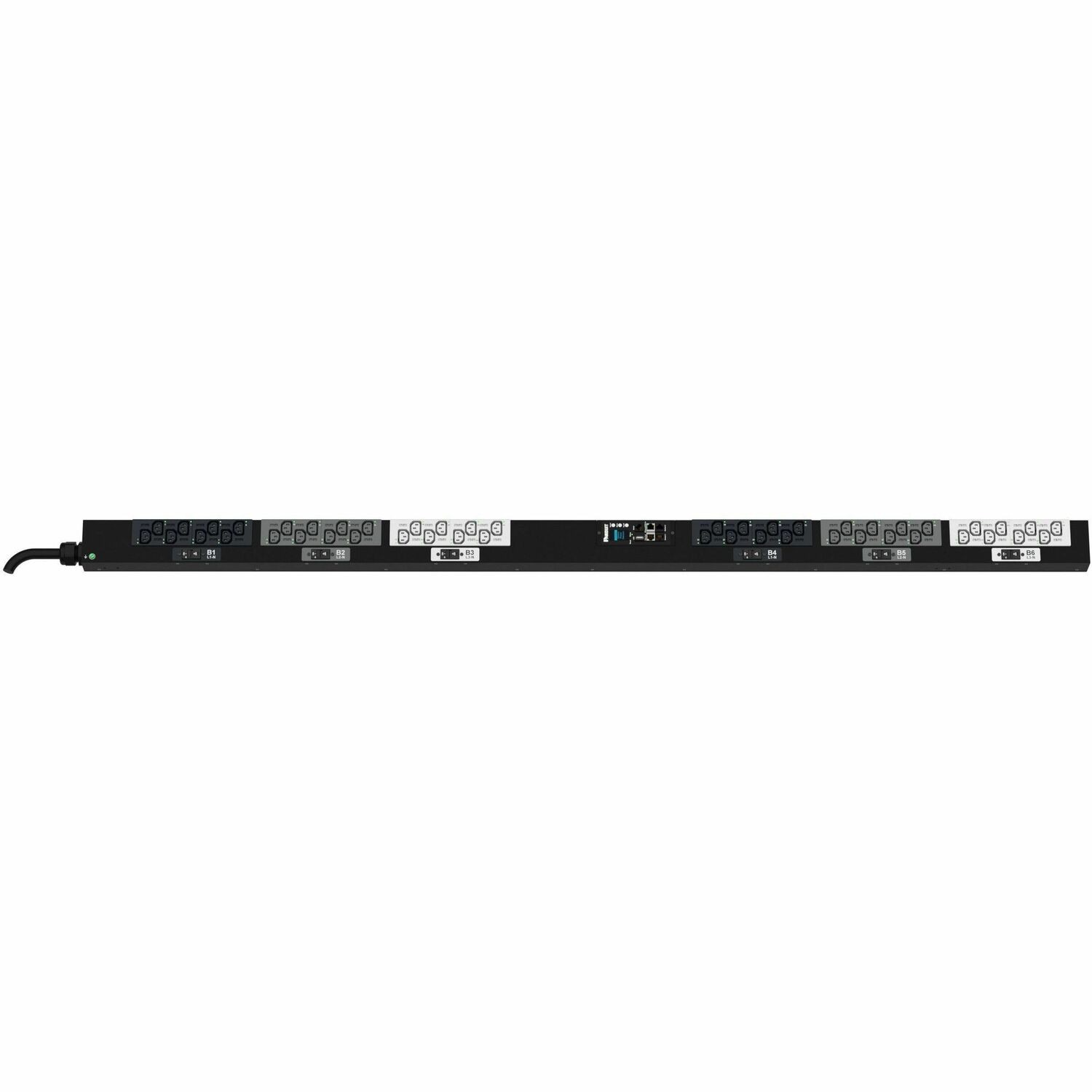

- Product Type
- PDU
- Technical Information
- PDU Type
- Monitored
- Switched
- Phase
- Three Phase
- Plug/Connector Type
- NEMA L22-30P
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 48 x IEC 60320 C13
- Power Description
- Input Voltage
- 415 V
- Output Voltage
- 240 V AC
- Power Rating (VA)
- 17.30 kVA
- Input Current
- 30 A
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Metal
- Mounting Orientation
- Vertical
- Height
- 74"
- Width
- 3.3"
- Depth
- 2.1"
- Environmental Conditions
- Minimum Operating Temperature
- 50°F (10°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- 24.8°F (-4°C)
- Maximum Storage Temperature
- 284°F (140°C)
- Miscellaneous
- Package Contents
- G6 MSPO PDU, 415V, 30 AMP, (48)C13, NEMA L22-30P, NCNR
- Mounting Hardware
- Additional Information
- Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device
- Cascade up to 32 PDUs
- Certifications & Standards
- UL 62368-1
- IEC 62368-1 (EMEA)
- FCC Pat 15 Class A (USA)
- RETIE (Colombia)
- Country of Origin
- India
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
