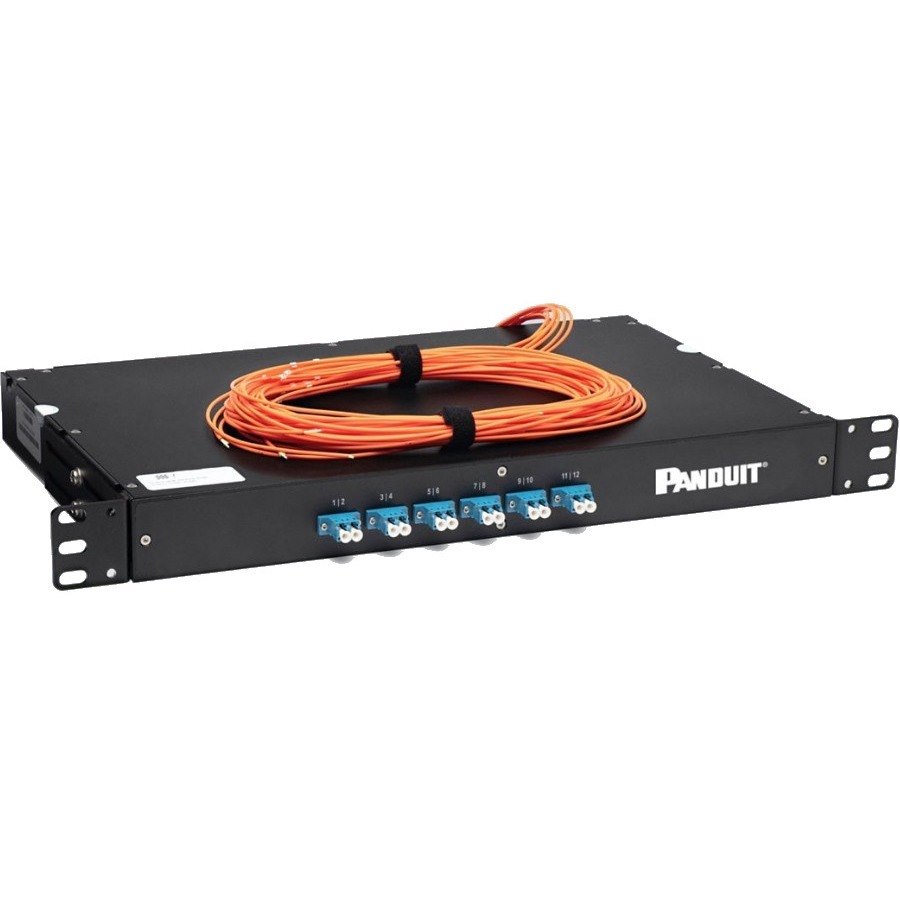

OneMode is a passive media converter that increases the speed of legacy multimode-fiber cables by eliminating modal dispersion. It's designed to help meet the need for speed without having to rip and replace legacy infrastructure. Panduit OneMode: Eliminates model dispersion by manipulating single-mode laser light; Reaches speeds of 10, 50, or even 100 Gbps; Provides a faster, more economical, less disruptive alternative to ripping up legacy fiber.
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Line
- OneMode
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Total Number of Ports
- 12
- Number of LC Ports
- 12
- LC Port Type
- Duplex
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- 1550 nm
- Maximum Distance Supported
- 0.80 km
- Fiber Optic Cable Core/Cladding Specification
- 62.5/125 µm
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 18.9"
- Depth
- 9.8"
- Miscellaneous
- Country of Origin
- France
