Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
- IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
- NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
- General Information
- Manufacturer
- Netgear, Inc
- Manufacturer Website Address
- http://www.netgear.com
- Brand Name
- Netgear
- Product Line
- AV Line
- Product Series
- M4350
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 25 Gigabit Ethernet Expansion Slots
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- 25 Gigabit Ethernet
- Network Technology
- 10GBase-X
- 25GBase-X
- 10GBase-T
- 5GBase-T
- 2.5GBase-T
- 10/100/1000Base-T
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- SFP28
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1as
- IEEE 802.1Qav
- IEEE 802.1Qat
- IEEE 802.1ak
- IEEE 802.3az
- IEEE 802.3ad
- IEEE 802.1AX
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1BA
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 576 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Power Consumption
- 880 W
- Plug/Connector Type
- C14
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Table Top
- Height
- 17"
- Width
- 14.4 ft
- Depth
- 15.7"
- Weight (Approximate)
- 14.51 lb
- Miscellaneous
- Package Contents

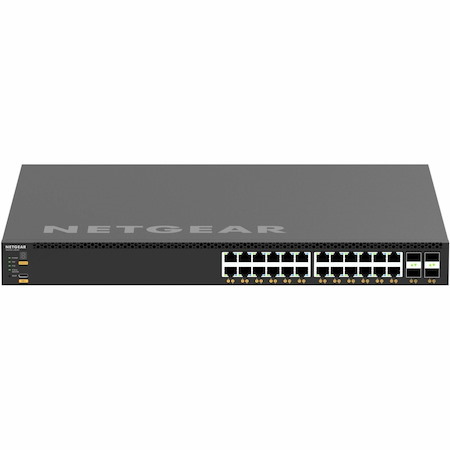

- AV Line M4350-24X4V Ethernet Switch
- Power Cord(s)
- USB Type-C To USB-A 2.0 Console Cable
- Rubber Caps For The SFP+/SFP28/QSP28 Sockets
- Rubber Footpads For Tabletop
- installation Installation Guide
- Rackmounting Standard Brackets
- Longer Brackets For Recessed Mounting
- Application/Usage
- Enterprise
- Business
- Network
- IP Phone
- VoIP Phone
- Environmentally Friendly
- Yes
- Energy Efficiency Compliance
- Energy-related Products Directive (ErP)
- Energy-using Products Directive (EuP)
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
