- General Information
- Manufacturer
- Netgear, Inc
 - Manufacturer Website Address
- http://www.netgear.com
 - Brand Name
- Netgear
 - Product Line
- AV Line
 - Product Series
- M4350
 - Product Type
- Ethernet Switch

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
- IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
- NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
- Warranty
- Limited Warranty
- Lifetime

- Interfaces/Ports
- Total Number of Network Ports
- 24
 - Uplink Port
- Yes
 - Modular
- Yes
 - Network (RJ-45)
- Yes
 - Port/Expansion Slot Details
- 24 x 10 Gigabit Ethernet PoE+
 - 4 x 25 Gigabit Ethernet Expansion Slots

- Media & Performance
- Media Type Supported
- Optical Fiber
 - Twisted Pair
 - Ethernet Technology
- 25 Gigabit Ethernet
 - Network Technology
- 10GBase-X
 - 25GBase-X
 - 10GBase-T
 - 5GBase-T
 - 2.5GBase-T
 - 10/100/1000Base-T

- I/O Expansions
- Total Number of Expansion Slots
- 4.0
 - Expansion Slot Type
- SFP28

- Network & Communication
- Layer Supported
- 3
 - Networking Standards
- IEEE 802.3bt
 - IEEE 802.3af
 - IEEE 802.3at
 - IEEE 802.1as
 - IEEE 802.1Qav
 - IEEE 802.1Qat
 - IEEE 802.1ak
 - IEEE 802.3az
 - IEEE 802.3ad
 - IEEE 802.1AX
 - IEEE 802.1s
 - IEEE 802.1w
 - IEEE 802.1p
 - IEEE 802.1Q
 - IEEE 802.1BA

- Management & Protocols
- Manageable
- Yes

- Power Description
- PoE (RJ-45) Port
- Yes
 - PoE Budget
- 576 W
 - Input Voltage
- 120 V AC
 - 230 V AC
 - Frequency
- 50 Hz
 - 60 Hz
 - Power Source
- Power Supply
 - Redundant Power Supply Supported
- Yes
 - Number of Power Supplies Supported
- 2
 - Number of Power Supplies Installed
- 1
 - Power Consumption
- 880 W
 - Plug/Connector Type
- C14

- Physical Characteristics
- Compatible Rack Unit
- 1U
 - Form Factor
- Rack-mountable
 - Table Top
 - Height
- 17"
 - Width
- 14.4 ft
 - Depth
- 15.7"
 - Weight (Approximate)
- 14.51 lb

- Miscellaneous
- Package Contents

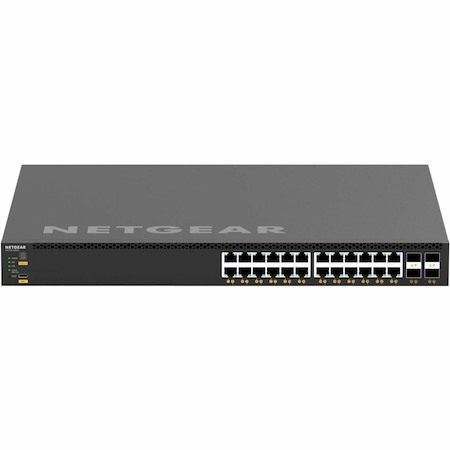

- AV Line M4350-24X4V Ethernet Switch
- Power Cord(s)
- USB Type-C To USB-A 2.0 Console Cable
- Rubber Caps For The SFP+/SFP28/QSP28 Sockets
- Rubber Footpads For Tabletop
- installation Installation Guide
- Rackmounting Standard Brackets
- Longer Brackets For Recessed Mounting

 - Application/Usage
- IP Phone
 - VoIP Phone

 - Business
 - Network
 - Environmentally Friendly
- Yes
 - Energy Efficiency Compliance
- Energy-related Products Directive (ErP)
 - Energy-using Products Directive (EuP)
 - Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
 - Restriction of Hazardous Substances (RoHS)
 - Waste Electrical and Electronic Equipment Directive (WEEE)
