- General Information
- Manufacturer
- Microchip Technology Inc.
- Manufacturer Website Address
- http://www.microchip.com
- Brand Name
- Microchip
- Product Type
- PoE Module

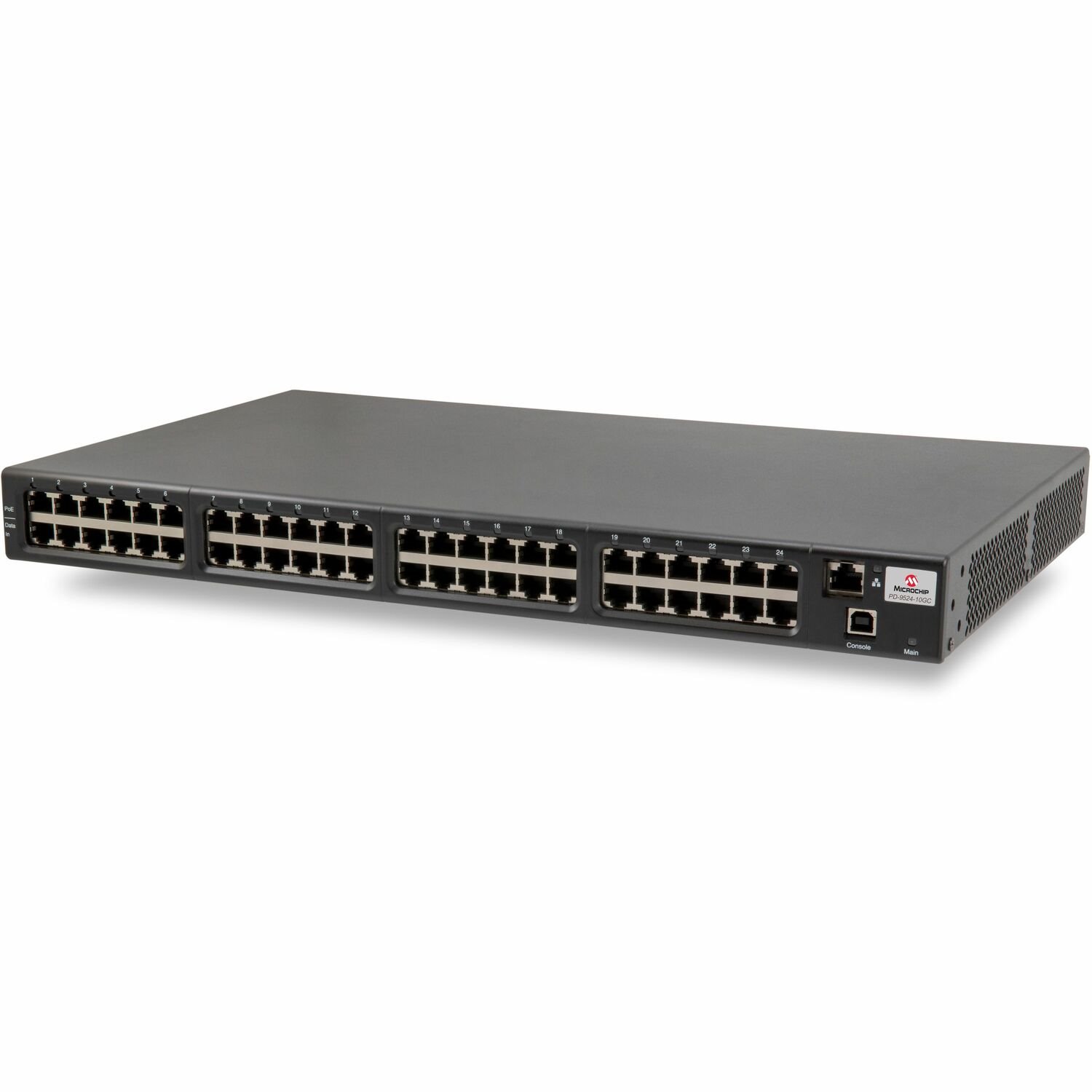

Microchip's PD-95xx-10GC is a family of Power over Ethernet (PoE) midspans offering 60W power per the IEEE802.3bt standard. The family is available in 6-, 12- and 24-port configurations. Input power is provided through a universal AC voltage connector. The product is designed for use with a standard 10/100/1000 and 10G BaseT Ethernet network over standard category 6A or better cabling, according to the IEEE802.3bt standard.
The PD-95xx-10GC family incorporates power management through Microchip's Powerview Pro software allowing the user to monitor and control the PD95xx-10GC via a remote network management station.
- Warranty
- Limited Warranty
- 3 Year
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Input Current
- 12 A
- Maximum Output Power
- 60 W
- Interfaces/Ports
- Input Ports
- 24 x Gigabit Ethernet
- Output Ports
- 24 x Gigabit Ethernet
- Physical Characteristics
- Form Factor
- Rack Mountable
- Height
- 1.7"
- Width
- 10.7"
- Length
- 17.1"
- Weight (Approximate)
- 12.08 lb
- Miscellaneous
- Package Contents
- PD-9524-10GC PoE Module
- Power Cord
- Certifications & Standards
- IEEE802.3bt type 3 Standard PDs
- IEEE 802.3af/at Backward Compatible
- FCC Part 15, Class B
- EN 55032 Class B
- EN 55024
- VCCI
- UL
- IEC
- EN 62368-1
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
- Country of Origin
- China
