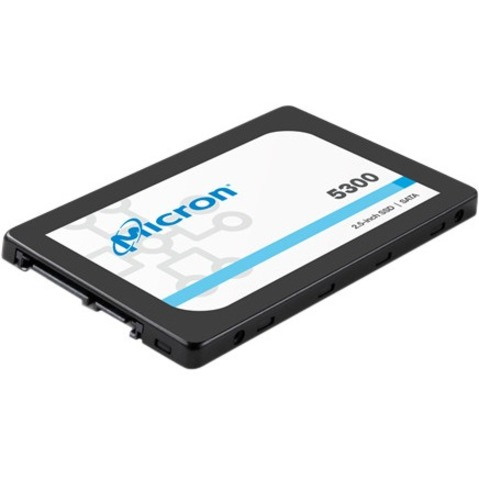

The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Series
- 5300
- Product Type
- Solid State Drive
- Warranty
- Limited Warranty
- 1 Year
- Additional Warranty Information
One-year, customer-replaceable unit (CRU) limited warranty
- Technical Information
- Storage Capacity
- 480 GB
- Encryption Standard
- 256-bit AES
- Drive Performance
- Maximum Read Transfer Rate
- 540 MB/s
- Maximum Write Transfer Rate
- 410 MB/s
- Random 4KB Read
- 85000IOPS
- Random 4KB Write
- 36000IOPS
- Endurance (DWPD)
- 1.5
- Endurance (TBW)
- 1324 TB
- Endurance Type
- Read Intensive
- Network & Communication
- Wireless LAN
- No
- Interfaces/Ports
- Drive Interface
- SATA
- Drive Interface Standard
- SATA/600
- Physical Characteristics
- Rugged
- Yes
- Drive Type
- Internal
- Form Factor
- 2.5"
- Hot Swappable
- No
- Height
- 0.3"
- Width
- 2.8"
- Depth
- 3.9"
- Weight (Approximate)
- 2.47 oz
- Miscellaneous
- Compatibility
Lenovo ThinkSystem Servers:
- ST50 V2 (7D8K / 7D8J)
- Device Supported
- Server
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
