- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- C2G
- Product Type
- Network Cable

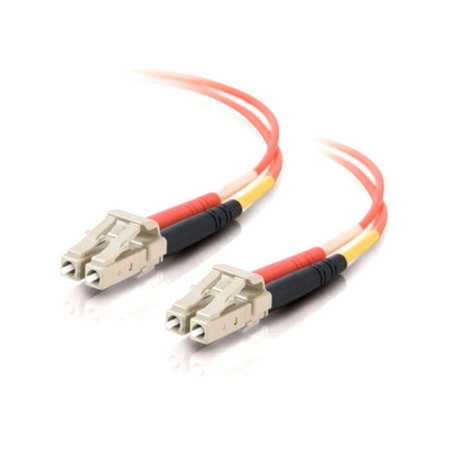

Get the performance you demand at a price that makes sense with 50/125 multimode fiber patch cords from Cables To Go. They provide higher bandwidth and transmission rates and support longer distances with lower loss than 62.5/125 fiber, but are still cost effective. Perfect for use with today's narrower aperture components, they are fully compatible with 62.5/125 applications. 50/125 multimode patch cords from Cables To Go are well-suited for protocols such as Ethernet, Fibre Channel, Infiniband, ATM, and Internet Protocol.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- Fiber Optic
- Cable Characteristic
- Patch Cable
- Core/Cladding Diameter
- 50/125 µm
- Cable Length
- 13.12 ft
- Connector Type on First End
- LC - Male
- Connector on First End Details
- 2 x LC - Male
- Connector Type on Second End
- LC - Male
- Connector on Second End Details
- 2 x LC - Male
- Jacket Type
- Plenum
- Physical Characteristics
- Product Color
- Orange
- Miscellaneous
- Additional Information
- Buffer material: PVC
- Buffer OD: 900 µm
- Jacket OD: 3.0 mm
- Jacket color: Orange
- Min. bandwidth @850 nm: 160 kHz/km
- Min. bandwidth @1310 nm: 500 kHz/km
- Attenuation @850 nm: 3.75 dB/km
- Attenuation @1310 nm: 1.5 dB/km
- Maximum tensile load: 100 N/cm
- Loaded min. bend radius: 5 cm
- Unloaded min. bend radius: 3 cm
- Crush resistance: 750 N/cm
- Impact resistance: 1000 cycles
- Flex resistance: 5000 cycles
- Country of Origin
- China
