- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- Audio/Video Switchbox

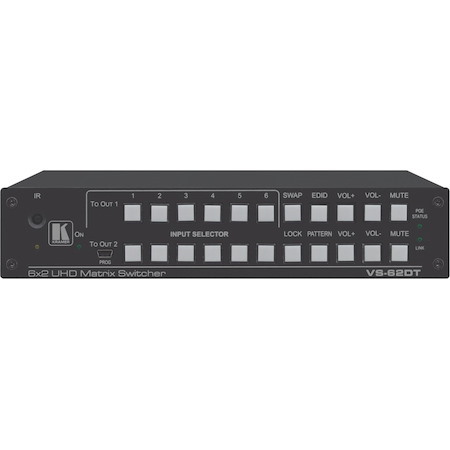

VS-62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long-reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.
- Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution - 4K@60Hz (4:2:0).
- HDCP 1.4 Support.
- HDMI 1.4 Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
- Routing - Six HDMI inputs can be routed to an HDMI and HDBaseT output.
- Power-over-Ethernet - Supply of PoE to compatible receivers.
- EDID Capture - Copies and stores the EDID from a display device per input.
- Programmable Step-in Functionality - When used together with compatible step-in devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
- True Video Clock Detection.
- Advanced Auto AV Switching - Last connected and priority switching modes.
- Non-Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- Lock Button - Prevents tampering with front panel buttons.
- Internal Pattern Generator.
- Kramer Protocol 3000 Support.
- Static or Dynamic DHCP IP Addressing.
- Flexible Control Options - Front panel buttons, IR remote (included), RS-232, Ethernet, contact closure, embedded Web server and step-in.
- Mini-USB Port - For upgrading firmware.
APPLICATIONS
- Conference rooms
- Entertainment
- Hospitality
- Technical Information
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 6
- Device Supported
- Display
- Blu-ray Disc Player
- Notebook
- Projector
- Speaker
- Number of Displays Supported
- 2
- Video
- Graphics Modes
- 4K
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Connectivity (RJ-45)
- Yes
- Number of Connectivity (RJ-45) Ports
- 2
- Number of USB Ports
- 1
- Number of HDMI Inputs
- 6
- Number of HDMI Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Physical Characteristics
- Height
- 1.7"
- Width
- 8.5"
- Depth
- 6.4"
- Weight (Approximate)
- 2.20 lb
