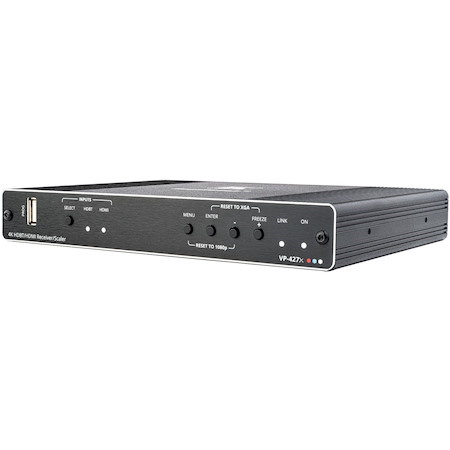

Kramer VP-427X 4K Auto-Switcher/Scaler Receiver over Long-Reach HDBaseT

  • Part: 3202412
  • Model: VP-427X
$770.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Kramer Electronics LTD
    • Manufacturer Website Address
    • http://www.kramerelectronics.com
    • Brand Name
    • Kramer
    • Product Line
    • MegaTOOLS
    • Product Type
    • Audio/Video Switchbox

VP-427X is a high-performance auto-switcher/scaler receiver for 4K HDMI™ over long-reach HDBaseT and a local HDMI input. VP-427X receives the HDBaseT signal from a compatible transmitter, converts it to HDMI and up- or down-scales the picture to any resolution up to 4K@60HZ (4:4:4) set by the user or automatically matching the resolution of the HDMI monitor. VP-427X enables extending video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

  • HDMI Signal Extension - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
  • Audio De-embedding - Output the HDMI audio to a balanced stereo output.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
  • Includes relay outputs and easy connection to occupancy sensors and contact closure switches.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation.
  • ProcAmp Control - Contrast, brightness, color, etc.
  • Freeze button.
  • Convenient Unit Control and Configuration Options - Local control via front panel source switching buttons and OSD menu. Distance control via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
  • Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.
  • Easy and Elegant Installation - Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.

APPLICATIONS

  • Classrooms and lecture halls
  • Meeting rooms
  • Training facilities
  • Collaborative classrooms
  • Any space where BYOD support is required
  • Warranty
    • Limited Warranty
    • 7 Year

  • Technical Information
    • Connectivity Technology
    • Cable
    • Number of Input Devices Supported
    • 1
    • Device Supported
    • Display
    • Number of Displays Supported
    • 1
  • Video
    • Graphics Modes
    • 4K
  • Interfaces/Ports
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • USB
    • Yes
    • Connectivity (RJ-45)
    • Yes
    • Number of Connectivity (RJ-45) Ports
    • 1
    • Number of USB Ports
    • 1
    • Number of HDMI Inputs
    • 1
    • Number of HDMI Outputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Maximum Operating Distance
    • 230 ft
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Height
    • 1"
    • Width
    • 7.4"
    • Depth
    • 5.7"
    • Weight (Approximate)
    • 1.98 lb
  • Miscellaneous
    • Package Contents
      • VP-427X 4K Auto-Switcher/Scaler Receiver over Long-Reach HDBaseT
      • Power Adapter
      • Rubber Feet
      • Bracket Set
