IOGEAR GCS1808KIT Combo KVM Switch

  • Part: 1018221
  • Model: GCS1808KIT
$382.00

Availability

In Stock

The GCS1808KIT KVM is a combo VGA switch that includes 8 KVM cables, set of 4 USB and 4 PS/2 KVM cables. Access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

More from the Manufacturer

  • General Information
    • Manufacturer
    • IOGEAR, Inc
    • Manufacturer Website Address
    • http://www.iogear.com
    • Brand Name
    • IOGEAR
    • Product Type
    • KVM Switchbox
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Number of Computers Supported
    • 8
    • Daisy Chain Supported
    • Yes
  • Video
    • Graphic Mode
    • QXGA
    • Maximum Video Resolution
    • 2048 x 1536
  • Interfaces/Ports
    • USB
    • Yes
    • Number of USB Ports
    • 1
  • Power Description
    • Input Voltage
    • 5.3 V DC
  • Physical Characteristics
    • Form Factor
    • Rack-mountable
    • Rack Height
    • 1U
    • Height
    • 1.8"
    • Width
    • 17"
    • Depth
    • 6.3"
    • Weight (Approximate)
    • 5.58 lb
  • Miscellaneous

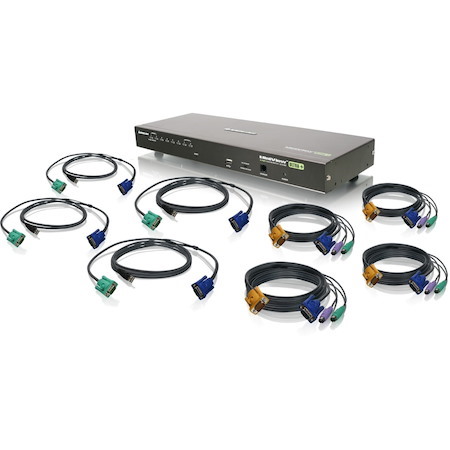

    • Package Contents
      • GCS1808KIT Combo KVM Switch
      • 2 x PS/2 KVM Cables (6ft - G2L5202P)
      • 2 x PS/2 KVM Cables (10ft - G2L5203P)
      • 2 x USB KVM Cables (6ft - G2L5202U)
      • 2 x USB KVM Cables (10ft - G2L5203U)
      • 1 x Console Cable
      • 1 x Cascade Cable
      • 1 x Firmware Upgrade Cable
      • 1 x Grounding Wire
      • 1 x Foot Pad Set (4 Pads)
      • 1 x Power Adapter
      • 1 x Standard Rack Mounting Kit
      • 1 x Installation Guide
      • 1 x Warranty Card
    • Environmentally Friendly
    • Yes
    • Country of Origin
    • China
