Reliable Power Back Up for All IT Equipment Needs

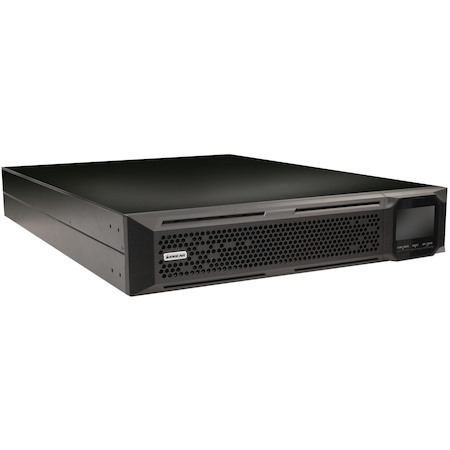

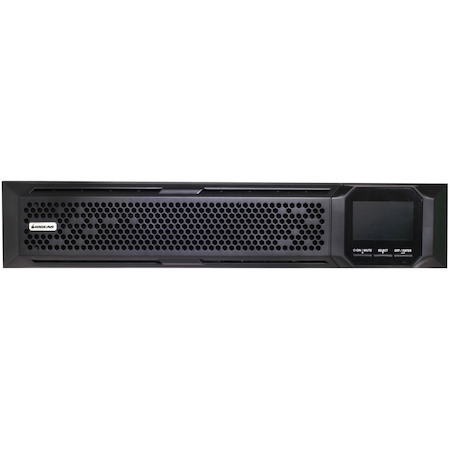

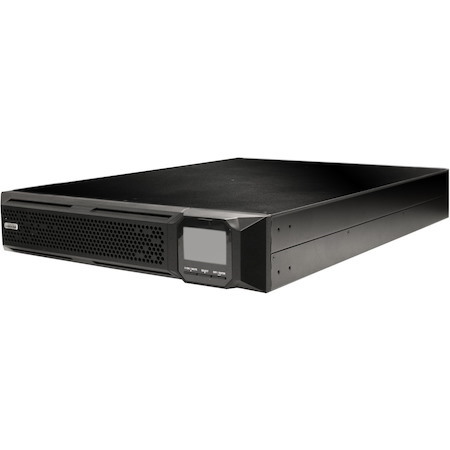

IOGEAR Online UPS Battery Back Up GBB2000N ? 2000VA/1930 Watts is a high-performance UPS system with NEMA 5-20P input plug and 8 NEMA 5-20R outlets designed for most server rack configurations that support data, network and communication applications. It utilizes true double conversion with 96% power factor efficiency for all the power supplied by the UPS for critical IT equipment needs and output voltage regulation provides higher performance for critical applications. The rackmount form factor installs use only two rack spaces (2U). It ships with all mounting accessories for a four-post rackmount installation.
Online UPS Battery Design
IOGEAR Online UPS design utilizes true double conversion with 96% power factor efficiency over industry & competitor standards for all the power supplied by the UPS for critical server needs and output voltage regulation provides higher performance for critical applications.
Expandable Power Configurations
IOGEAR Online UPS provides expandable power solutions with External Battery Packs that can be daisy chained to increase system runtime.
Programmable Power Management Outlets
During a power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical applications and devices.
Emergency Power Off function

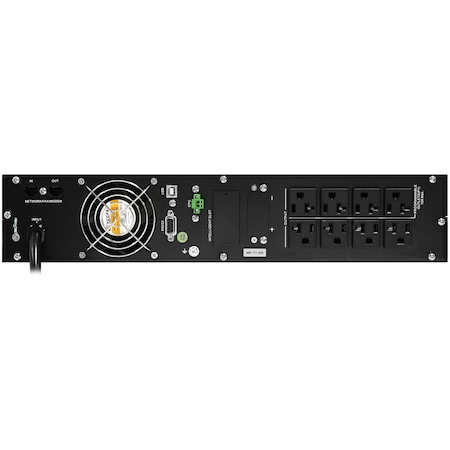

EPO connector at rear panel allows emergency UPS Power Off from a remote location.
SNMP + USB + RS-232 Multiple Communications
Use either USB or RS-232 communication ports to work with SNMP interface simultaneously.
Swappable Battery Design
IOGEAR Online UPS Battery Back Up swappable battery design allows for complete power module exchange without powering down connected equipment.
Efficient Power Modes
IOGEAR Online UPS batteries use ECO Mode to conserve energy and allow up to 97% efficiency cutting energy usage and cost. The unit provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection. The Online UPS battery high power factor charging up to 1930W capacity with very low ripple current when charging the battery. The smart battery charger design allows the Online UPS to optimize battery performance by adjusting charging voltage according to outside temperatures and extends the useful service life of batteries.
- General Information
- Manufacturer
- IOGEAR, Inc
- Manufacturer Website Address
- http://www.iogear.com
- Brand Name
- IOGEAR
- Packaged Quantity
- 1
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 8 x NEMA 5-20R
- Number of Battery & Surge Outlets
- 8
- Transfer Time
- 0 ns
- Energy Saving
- >96%(ECO), >90%(AC), >89%(Batt)
- Power Description
- Load Capacity (VA)
- 2000 VA
- Load Capacity (Watt)
- 1930 W
- Input Voltage
- 120 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Management
- Network Management
- SNMP
- Controls/Indicators
- Status Indicators
- Multi-functional LCD interface
- Interfaces/Ports
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- DC System Voltage
- 48 V DC
- Number of Batteries
- 4
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 2.95 Minute
- Backup/Run Time (Half Load)
- 10 Minute
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- -4°F (-20°C) - 122°F (50°C)
- Physical Characteristics
- Height
- 3.5"
- Width
- 17.3"
- Form Factor
- Tower
- Weight (Approximate)
- 46.50 lb
- Miscellaneous
- Package Contents
- Professional Online 2000VA, 1930W UPS - TAA
- 1 x Rack Mounting Kit Set
- 4 x Tower Stand
- 1 x Rail Slide Kit Set
- 1 x RS-232 Cable
- 1 x USB Type-A to B Cable
- 1 x User Manual
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
