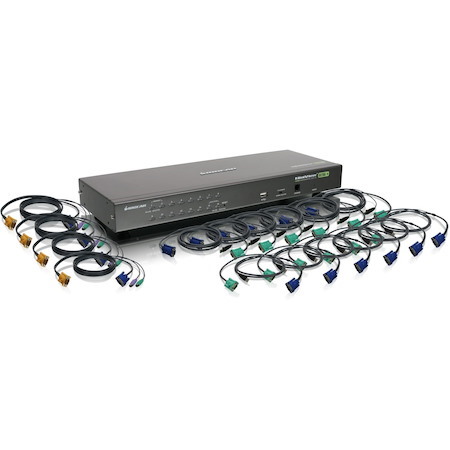

IOGEAR USB PS/2 Combo KVM Switch

  • Part: 1013017
  • Model: GCS1716KIT
$652.00

Availability

Out of Stock

The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

More from the Manufacturer

  • General Information
    • Manufacturer
    • IOGEAR, Inc
    • Manufacturer Website Address
    • http://www.iogear.com
    • Brand Name
    • IOGEAR
    • Product Type
    • KVM Switchbox
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Number of Computers Supported
    • 16
    • Daisy Chain Supported
    • Yes
  • Video
    • Graphic Mode
    • QXGA
    • Maximum Video Resolution
    • 2048 x 1536
  • Physical Characteristics
    • Form Factor
    • Rack-mountable
    • Rack Height
    • 1U
    • Height
    • 1.8"
    • Width
    • 17"
    • Depth
    • 6.3"
  • Miscellaneous
    • Package Contents
      • USB PS/2 Combo KVM Switch
      • Rack Mount Kit
      • 6 x 2M USB KVM Cable (G2L5202U)
      • 6 x 3M USB KVM Cable (G2L5203U)
      • 2 x 2M PS/2 KVM Cable (G2L5202P)
      • 2 x 3M PS/2 KVM Cable (G2L5203P)
      • 1 x Console Cable
      • 1 x Firmware Upgrade Cable
      • 1 x Grounding Wire
      • 1 x Foot Pad Set (4 Pads)
      • 1 x Power Adapter
      • 1 x User Manual
      • 1 x Warranty Registration Form
    • Environmentally Friendly
    • Yes
    • Country of Origin
    • China
