- General Information
- Manufacturer
- Intel Corporation
 - Manufacturer Website Address
- http://www.intel.com
 - Brand Name
- Intel
 - Product Series
- 600
 - Packaged Quantity
- 1 Pack
 - Product Type
- 2.5Gigabit Ethernet Card

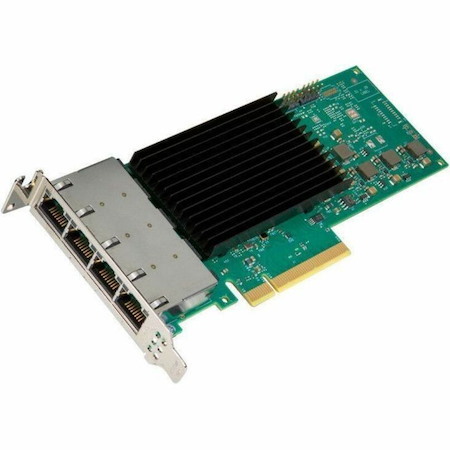

Simplify technology transitions and optimize performance with the Intel® Ethernet Network Adapter E610-IT4. Part of the Intel® Ethernet 600 Series Network Adapters, the E610-IT4 offers broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
The E610-IT4 supports auto-negotiation between multiple port speeds, providing maximum flexibility in a quad-port configuration. Affordably expand network speeds up to 2.5GbE via four network connections on a single device, allowing for increased bandwidth and connectivity options within a single PCIe slot. Particularly beneficial for servers or workstations requiring multiple high-speed network connections, the E610-IT4 provides more network ports in a smaller footprint compared to multiple single-port adapters.
The 600 Series also includes the latest innovations for 2.5GBASE-T and 1GBASE-T connectivity. Advanced security features offer modern standards-based cryptographic security anchored by hardware Root of Trust (RoT), and secure communications via PLDM manageability enhances Ethernet security.
- Technical Information
- Chipset Manufacturer
- Intel
 - Chipset Model
- E610-IAT2
 - Features
- Virtual Extensible LAN (VXLAN)
 - Generic Network Virtualization Encapsulation (GENEVE)
 - Network Virtualization using Generic Routing Encapsulation (NVGRE)
 - Extended Message-Signaled Interrupts (MSI-X)

- Interfaces/Ports
- Host Interface
- PCI Express 4.0 x8
 - Total Number of Ports
- 4
 - Number of Network (RJ-45) Ports
- 4

- Media & Performance
- Media Type Supported
- Twisted Pair
 - Maximum Data Transfer Rate
- 2.50 Gbit/s

- Network & Communication
- Network Technology
- 100Base-TX

 - 1000Base-T

- Physical Characteristics
- Height
- 6.65" (169 mm)
 - Width
- 2.72" (69 mm)

- Miscellaneous
- Application/Usage
- Network
 - Device Supported
- Server
 - Workstation
