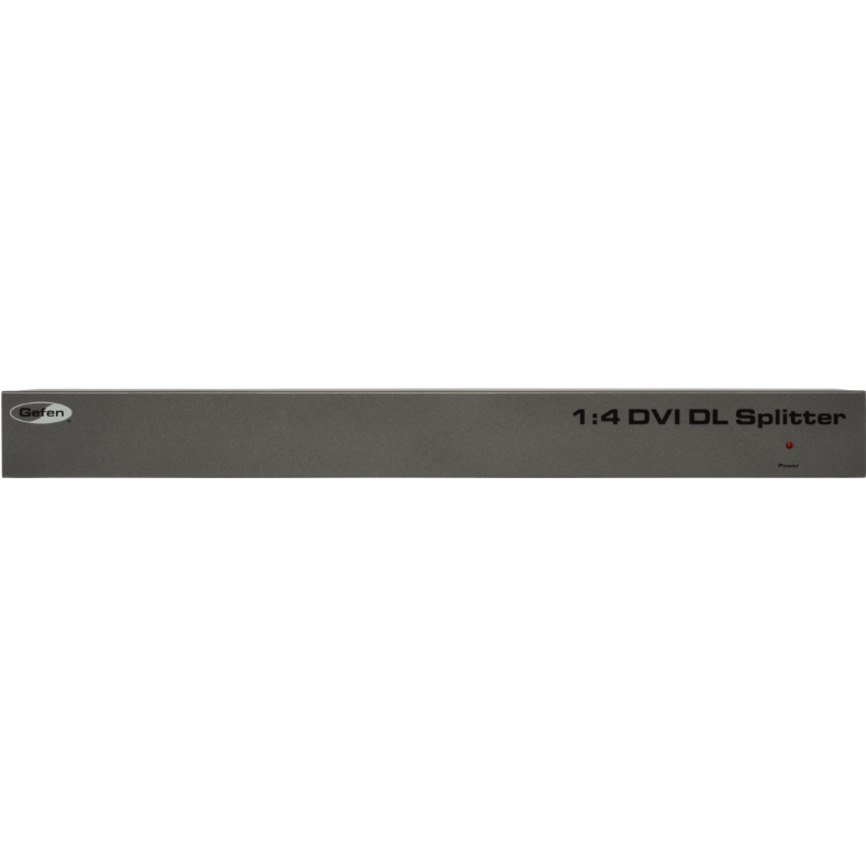

Split one Dual Link DVI source to four Dual Link DVI outputs
The 1:4 DVI Dual Link Splitter distributes a dual link DVI source to four DVI dual link outputs, without losing quality or resolution. It works with any dual link DVI computer supporting resolutions up to 3840 x 2400. The DVI DL Splitter supports internal or pass-through EDID selections, output masking on/off, and can be placed in standby mode, which keeps the unit idle using only 1W of power when the source is inactive. Using the RS-232 port allows making mode changes for the EDID and output masking in addition to firmware upgrade.
- General Information
- Manufacturer
- Gefen, Inc
- Manufacturer Website Address
- http://www.gefen.com
- Brand Name
- Gefen
- Packaged Quantity
- 1
- Product Type
- Video Switchbox
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Number of Input Devices Supported
- 1
- Device Supported
- Computer
- Number of Displays Supported
- 4
- Video
- Graphics Modes
- WQUXGA
- Maximum Video Resolution
- 3840 x 2400
- Scan Format
- 1080p
- Interfaces/Ports
- DVI In
- Yes
- DVI Out
- Yes
- Number of DVI Inputs
- 1
- Number of DVI Outputs
- 4
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.8"
- Width
- 17.1"
- Depth
- 4.2"
- Miscellaneous
- Package Contents
- DVI Splitter
- 1 x 6ft. DB9 Cable (M-F)
- 1 x 6ft. Dual Link DVI Cable (M - M)
- 1 x 5V / 4A DC Locking Power Supply
- 1 x Set of Rack Ears
- 1 x Manual
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
