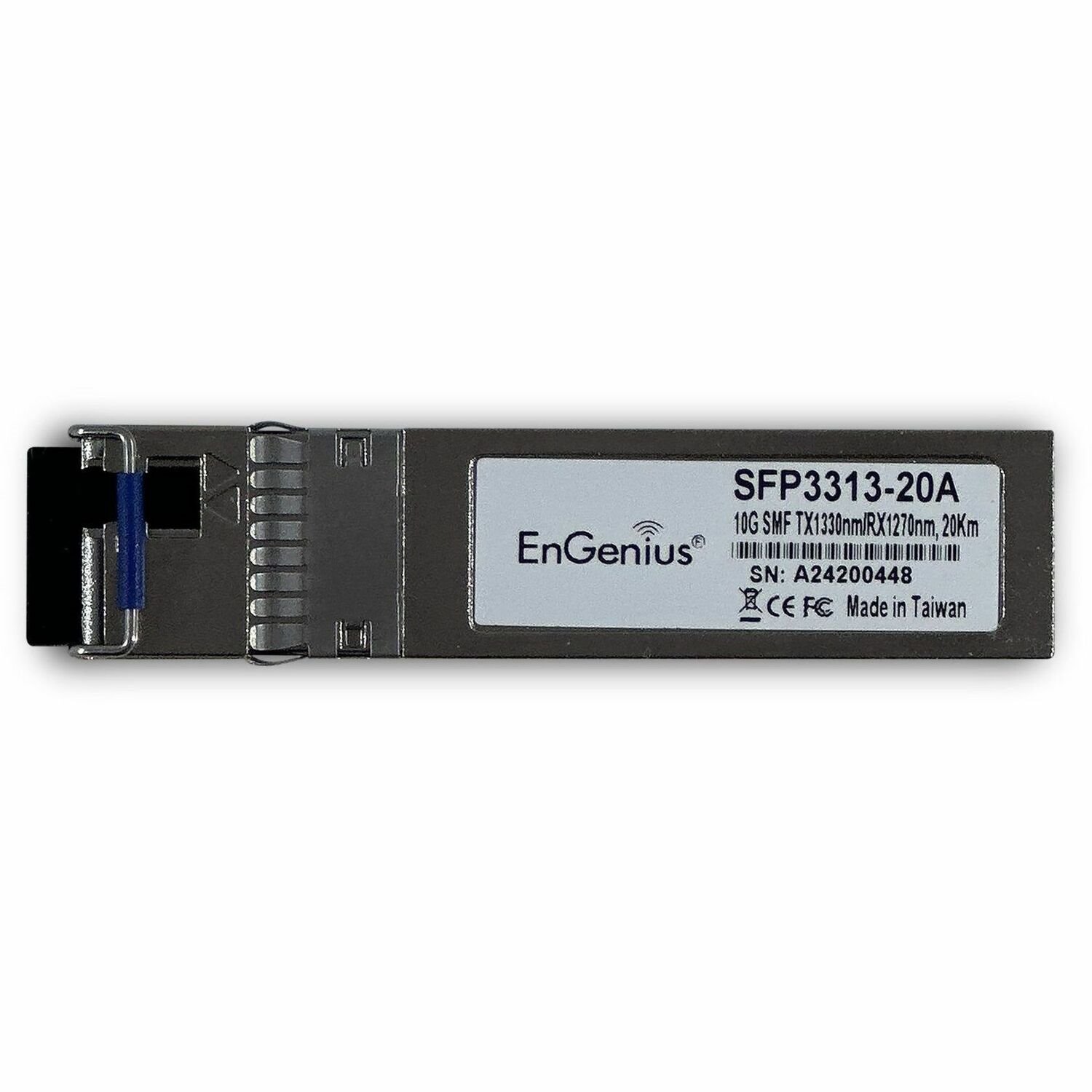

EnGenius SFP3313-20A SFP plus Transceivers are hot-swappable multi-purpose optical modules that support 10 Gigabit Ethernet applications across most switching and routing platforms. The transceivers support operating at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 20,000m, ideally suited for data centers, enterprise and storage area networks.
- General Information
- Manufacturer
- EnGenius Technologies, Inc
- Manufacturer Website Address
- http://www.engeniustech.com
- Brand Name
- EnGenius
- Product Type
- SFP+
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 10GBase-LR Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1330 nm
- 1270 nm
- Fiber Mode Supported
- Single-mode (Bi-directional)
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-LR
- Maximum Distance Supported
- 20 km
- Maximum Data Transfer Rate
- 10 Gbit/s
- Physical Characteristics
- Form Factor
- Hot-swappable
- Height
- 0.4"
- Width
- 0.6"
- Length
- 2.26"
- Weight (Approximate)
- 0.06 lb
- Miscellaneous
- Country of Origin
- Taiwan
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
