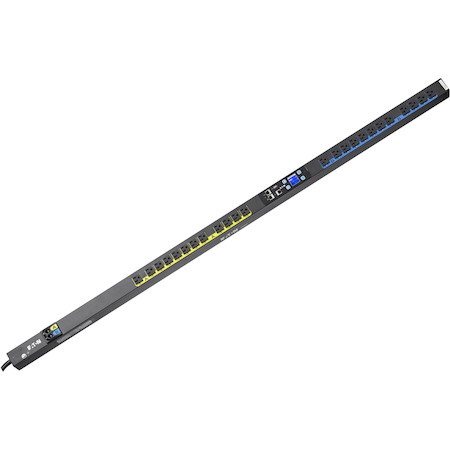

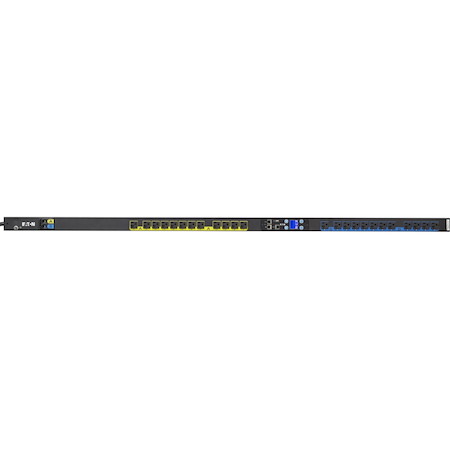

Eaton Managed rack PDU, 0U, L5-30P input, 2.88 kW max, 120V, 24A, 10 foot cord, Single-phase

  • Part: 1080950
  • Model: EMA108-10
$1,713.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Eaton Corporation
    • Manufacturer Website Address
    • http://www.eaton.com
    • Brand Name
    • Eaton
    • Product Line
    • ePDU
    • Product Series
    • Managed
    • Product Type
    • PDU

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.

  • Outlet switching for on, off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug

  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • PDU Type
    • Switched
    • Plug/Connector Type
    • NEMA L5-30P
    • Plug/Connector Detail
    • 1 x NEMA L5-30P
    • Receptacle Type
    • NEMA 5-20R
    • Receptacle Detail
    • 24 x NEMA 5-20R
  • Power Description
    • Input Voltage
    • 120 V AC
    • Output Voltage
    • 120 V AC
    • Power Rating (Watt)
    • 2880 W
    • Input Current
    • 24 A
    • Circuit Breaker
    • Yes
  • Interfaces/Ports
    • Serial Port
    • Yes
    • Network (RJ-45)
    • Yes
  • Physical Characteristics
    • Product Color
    • Black
    • Mounting Orientation
    • Vertical
    • Rack Height
    • 38U
    • Cord Length
    • 10 ft
    • Height
    • 66.5"
    • Width
    • 2.1"
    • Depth
    • 2.6"
  • Miscellaneous
    • Certifications & Standards
    • cUL
    • Country of Origin
    • China
