Eaton 9SX 1500VA 1350W 208V Online Double-Conversion UPS - 6 C13 Outlets, Cybersecure Network Card Option, Extended Run, Tower

  • Part: 1255099
  • Model: 9SX1500G
$1,369.00

Availability

Out of Stock

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss

This 9SX on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Featuring surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the 9SX1500G provides the highest level of AC power protection and battery backup for medical, light industrial, automation and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (9SXEBM48, sold separately) for hours of extended runtime.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

C13 Outlets Protect Your Connected Components

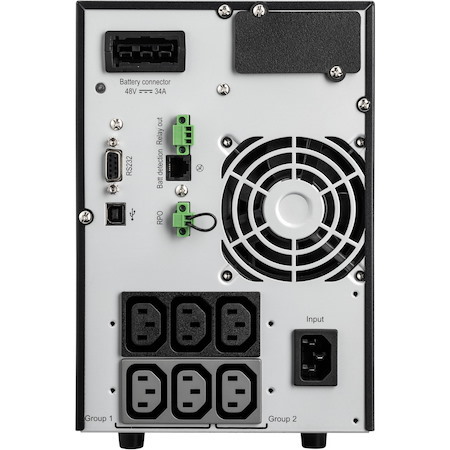

Six C13 outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Three outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

  • General Information
    • Manufacturer
    • Eaton Corporation
    • Manufacturer Website Address
    • http://www.eaton.com
    • Brand Name
    • Eaton
    • Product Type
    • Double Conversion Online UPS
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Plug/Connector Type
    • IEC 60320 C14
    • Receptacle Type
    • IEC 60320 C13
    • Receptacle Detail
    • 8 x IEC 60320 C13
    • Application/Usage
    • Industrial Equipment
    • Industrial Automation System
    • IT System
  • Power Description
    • Load Capacity (VA)
    • 1500 VA
    • Load Capacity (Watt)
    • 1350 W
    • Input Voltage
    • 230 V AC
    • Input Voltage Range
    • 190 V AC - 276 V AC
    • Output Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    • Waveform Type
    • Sine Wave
  • Battery Information
    • Backup/Run Time (Full Load)
    • 5.30 Minute
  • Physical Characteristics
    • Form Factor
    • Tower
    • Weight (Approximate)
    • 41.90 lb
  • Miscellaneous
    • Package Contents
      • 1500VA Tower UPS
      • Manual
      • Quick Start Guide
      • Safety Guide
      • Serial And USB Cables
    • Country of Origin
    • China
