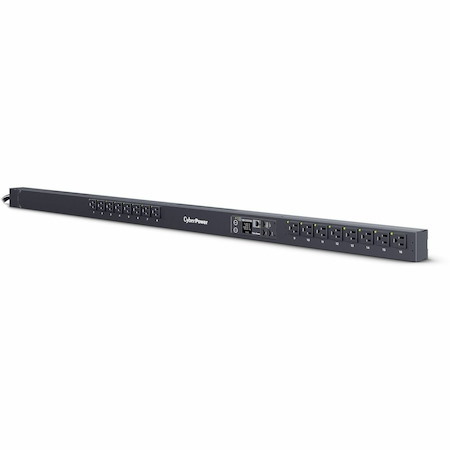

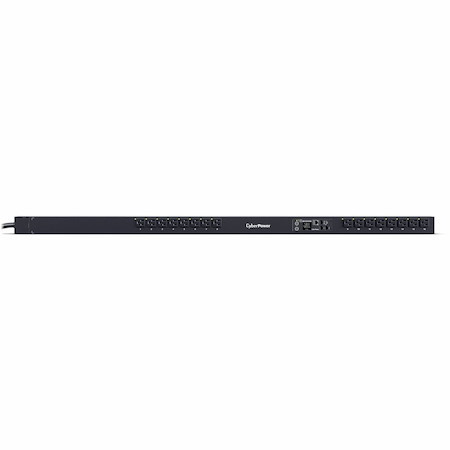

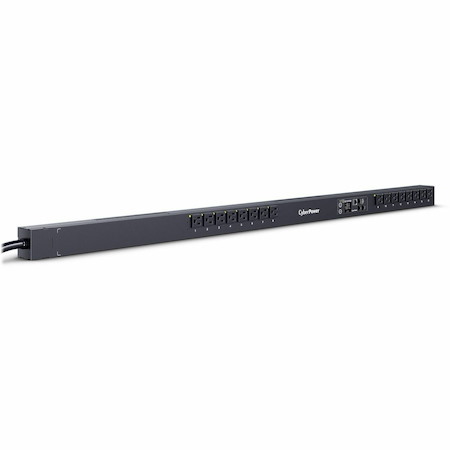

The CyberPower PDU41116, a 16-outlet, 0U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 16 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Condition
- New
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Switched
- Phase
- Single Phase
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 16 x NEMA 5-15R
- Features
- LCD Display
- Power Description
- Output Voltage Range
- 100 V AC - 120 V AC
- Input Current
- 15 A
- Input Frequency
- 60 Hz
- Management
- Management
- SNMP
- TCP/IP
- UDP
- DHCP
- HTTP
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Wall-mountable
- Form Factor
- Horizontal/Vertical
- Rack Height
- 0U
- Cord Length
- 10 ft
- Height
- 53.1"
- Width
- 1.9"
- Depth
- 2.2"
- Weight (Approximate)
- 11.90 lb
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Operating Humidity
- 0%
- Maximum Operating Humidity
- 95%
- Minimum Storage Temperature
- 5°F (-15°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Miscellaneous
- Certifications & Standards
UL 62368-1
- Environmentally Friendly
- Yes
- Environmental Certification
- RoHS
