CyberPower PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic PDU

  • Part: 1049596
  • Model: PDU30BT8F8R
$228.00

Availability

Out of Stock
  • General Information
    • Manufacturer
    • CyberPower Systems, Inc
    • Manufacturer Website Address
    • https://www.cyberpowersystems.com/
    • Brand Name
    • CyberPower
    • Product Series
    • Basic PDU
    • Product Type
    • PDU

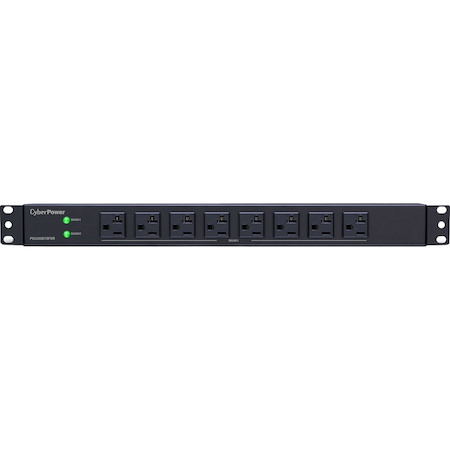

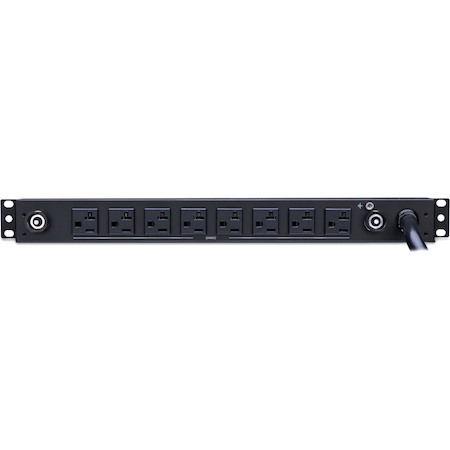

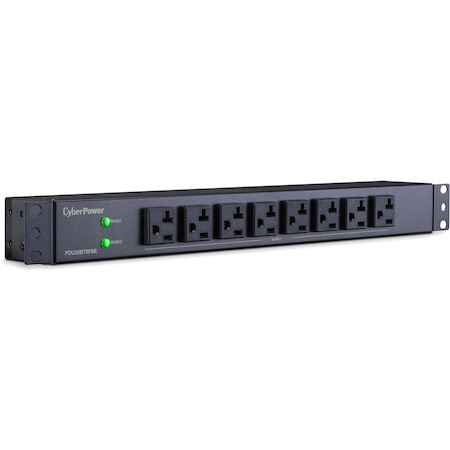

The CyberPower PDU30BT8F8R, a 16-outlet (8 front, 8 rear) rackmount basic power distribution unit (PDU), provides 100 - 125 V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BT8F8R has rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.

Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

What's In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card

  • Warranty
    • Limited Warranty
    • Lifetime

  • Technical Information
    • PDU Type
    • Basic
    • Phase
    • Single Phase
    • Plug/Connector Type
    • NEMA L5-30P
    • Receptacle Type
    • NEMA 5-20R
    • Receptacle Detail
    • 16 x NEMA 5-20R
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage
    • 120 V AC
    • Input Voltage Range
    • 100 V AC - 125 V AC
    • Output Voltage Range
    • 100 V AC - 125 V AC
  • Physical Characteristics
    • Mounting Orientation
    • Vertical
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 1U
    • Height
    • 1.8"
    • Width
    • 17.5"
    • Depth
    • 2.3"
    • Weight (Approximate)
    • 6 lb
  • Miscellaneous
    • Package Contents
      • Basic PDU30BT8F8R 16-Outlets PDU
      • Cord Retention Tray
      • User Manual
      • Screw Kit
      • Cord Clip Kit
      • Horizontal Mounting Brackets
      • Vertical Mounting Brackets
      • Product Registration Card
    • Certifications & Standards
      • UL60950_1 certified by ETL
      • CSA C22.2
    • Energy Star
    • No
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
