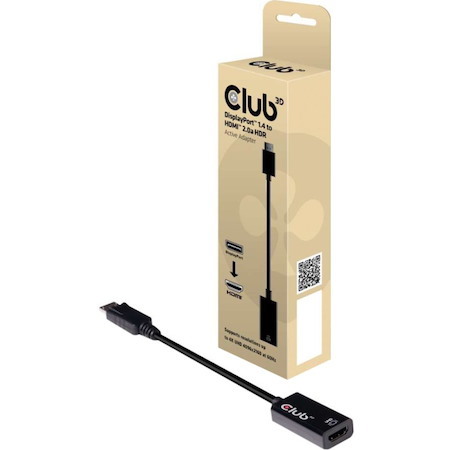

Club 3D DisplayPort 1.4 to HDMI 2.0a HDR

  • Part: 3204877
  • Model: CAC-1080
$26.00

Availability

In Stock

CAC-1080 - The Club3D CAC-1080 is a DisplayPort™ 1.4 to HDMI™ 2.0a active signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0a. The CAC-1080 is downwards compatible to earlier Displayport™ and HDMI™ versions, but this can influence the functionality and/or supported features such as HDR.

Resolution Support
The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.

  • General Information
    • Manufacturer
    • Club 3D
    • Manufacturer Website Address
    • http://www.club-3d.nl
    • Brand Name
    • Club 3D
    • Product Type
    • A/V Cable

  • Technical Information
    • Cable Type
    • DisplayPort/HDMI
    • Cable Length
    • 7.52"
    • Connector Type on First End
    • HDMI 2.0a Digital Audio/Video - Female
    • Connector on First End Details
    • 1 x 19-pin HDMI 2.0a Digital Audio/Video - Female
    • Connector Type on Second End
    • DisplayPort 1.4 Digital Audio/Video - Male
    • Connector on Second End Details
    • 1 x DisplayPort 1.4 Digital Audio/Video - Male
    • Device Supported
    • Audio/Video Device
    • Data Transfer Rate
    • 5.4 Gbit/s
    • Supported Resolution
    • 4096 x 2160
    • Features
    • Active
    • Repeater
  • Physical Characteristics
    • Product Color
    • Black
    • Weight (Approximate)
    • 0.07 lb
  • Miscellaneous
    • Environmentally Friendly
    • Yes
    • Country of Origin
    • China
