- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- C240 M5
- Product Type
- Server

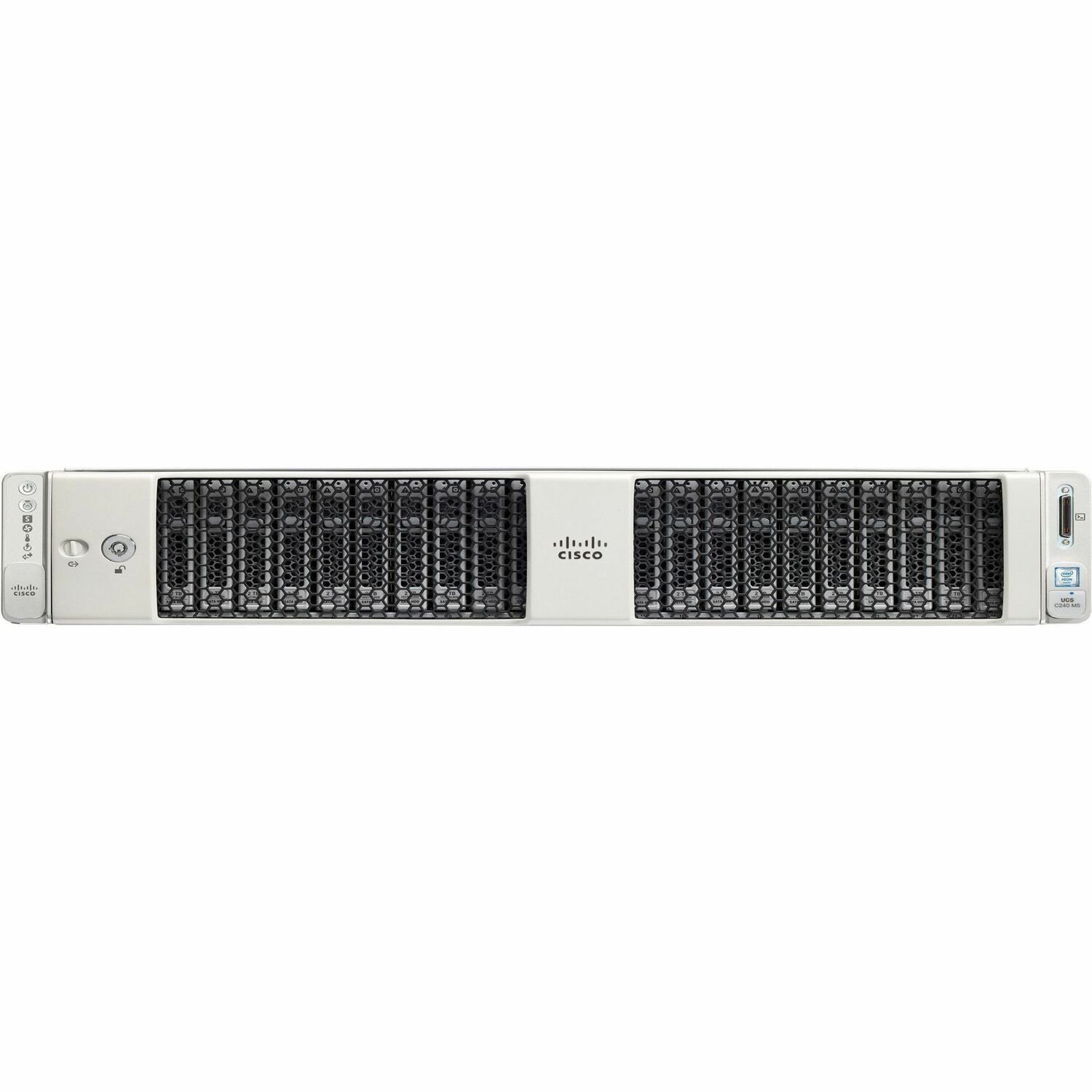

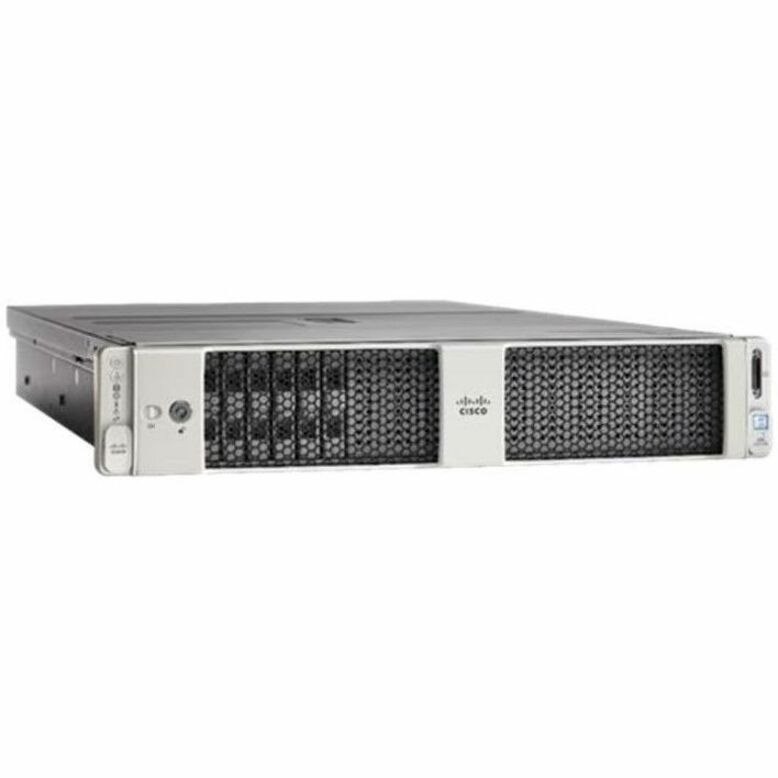

UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and up to 128GB capacity points, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded(on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 2
- Processor Manufacturer
- Intel
- Processor Type
- Xeon Silver
- Processor Model
- 4114
- Processor Core
- Deca-core (10 Core)
- Processor Speed
- 2.20 GHz
- Memory
- Standard Memory
- 32 GB
- Maximum Memory Supported
- 3 TB
- Memory Technology
- DDR4 SDRAM
- Total Number of Memory Slots
- 24.0
- Number of Occupied Memory Slots
- 2
- Storage
- Total Hard Drive Capacity
- No
- Optical Drive Type
- No
- Controllers
- Controller Type
- 12Gb/s SAS
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 6, 10, 50, 60, JBOD
- I/O Expansions
- Number of Total Expansion Bays
- 26
- Number of Internal 2.5" Bays
- 26
- Hot Swappable Bays
- Yes
- Display & Graphics
- Graphics Controller Manufacturer
- ASPEED
- Graphics Controller Model
- Pilot 4
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Operating System
- Operating System
- No
- Power Description
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 1050 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 3.4"
- Width
- 19"
- Depth
- 30.2"
- Weight (Approximate)
- 57.50 lb
