- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Aironet
- Product Series
- 1550
- Product Type
- Wireless Access Point

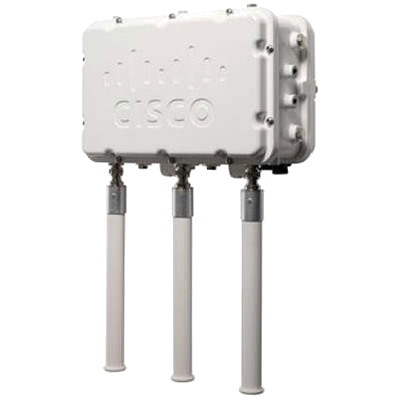

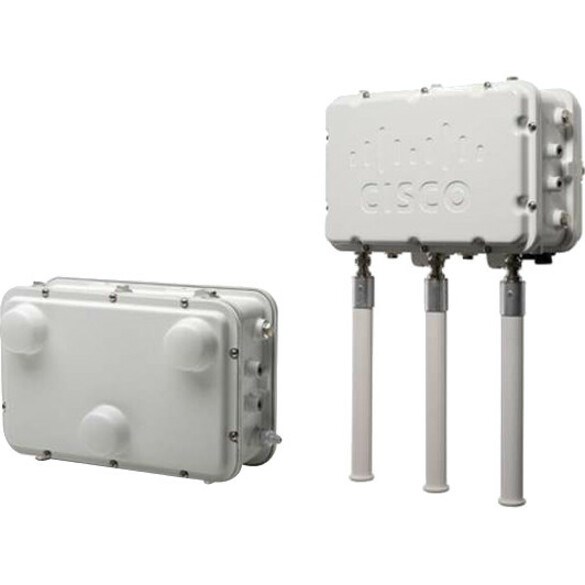

The Cisco® Aironet® 1550 Series Outdoor Access Point with Cisco CleanAir™ technology is the industry's first enterprise and carrier-grade 802.11n access point to create a self-healing and self-optimizing wireless network that mitigates the impact of wireless interference. It offers a flexible, secure, and scalable mesh network for high-performance mobility across large metropolitan-sized areas, enterprise campuses, manufacturing yards, and mining pits. The Cisco Aironet 1550 Series supports multiple-device and multiple-network application delivery such as real-time seamless mobility, video surveillance, 3rd Generation (3G) and 4G data offload, and public and private Wi-Fi access. Designed to meet customer needs in a broad range of industries, the Cisco Aironet 1550 Series offers the following benefits:
- Flexible deployment options: Access or mesh network, extension of an Ethernet network, and Ethernet, fiber, wireless, or cable backhaul.
- Service provider support: Wi-Fi for next-generation mobile data offload and personalized mobile services.
- Cisco CleanAir technology: Integrated spectrum intelligence to detect, classify, and mitigate RF interference from unauthorized wireless bridges or malicious devices.
- High-bandwidth video surveillance over Wi-Fi without the high cost of installing cables over long distances.
- High-performance, multipurpose network with low CapEx and OpEx.
- Integrated wired and wireless: The Cisco Borderless Network Architecture provides cost savings with end-to-end network access solutions that include wireless, switching, routing, and security.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Wireless LAN Standard
- IEEE 802.11n
- ISM Band
- Yes
- UNII Band
- Yes
- ISM Minimum Frequency
- 2.40 GHz
- ISM Maximum Frequency
- 2.48 GHz
- UNII Minimum Frequency
- 5.28 GHz
- UNII Maximum Frequency
- 5.83 GHz
- Total Number of Antennas
- 6
- Antenna Type
- Omnidirectional Antenna
- Directional Antenna
- Wireless Transmission Speed
- 300 Mbit/s
- Wireless Security
- AES
- TKIP
- IEEE 802.11i
- IEEE 802.1X
- WPA2
- WPA
- EAP-PEAP
- EAP-TLS
- EAP-TTLS
- EAP-SIM
- LEAP
- Features
- MIMO Technology
- Quality of Service (QoS)
- Interfaces/Ports
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- Network (RJ-11)
- No
- PoE (RJ-45) Port
- Yes
- VGA
- No
- HDMI
- No
- Audio Line Out
- No
- Serial Port
- No
- USB
- No
- Powerline
- No
- Management Port
- No
- I/O Expansions
- Expansion Slot Type
- SFP (mini-GBIC)
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Form Factor
- Pole-mountable
- Height
- 6.1"
- Width
- 12.3"
- Depth
- 8.6"
- Weight (Approximate)
- 17.30 lb
- Miscellaneous
- Certifications & Standards
- IP67
- NEMA Type 4X
Safety:
- UL 60950, 2nd Edition
- CAN/CSA-C22.2 No. 60950, 2nd Edition
- IEC 60950, 2nd Edition
- EN 60950, 2nd Edition
Immunity:
- ANSI/IEEE C62.41
- EN61000-4-5 Level 4 AC Surge Immunity
- EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
- EN61000-4-3 Level 4 EMC Field Immunity
- EN61000-4-2 Level 4 ESD Immunity
- EN60950 Overvoltage Category IV
Radio approvals:
- FCC Part 15.247, 15.407
- FCC Bulletin OET-65C
- RSS-210
- RSS-102
- AS/NZS 4268.2003
- EN 300 328
- EN 301 893
EMI and susceptibility:
- FCC part 15.107, 15.109
- ICES-003
- EN 301 489-1, -17
IEEE Standards:
- 802.11a
- 802.11b
- 802.11g
- 802.11n
- 802.3af
- 802.11i
- 802.1X
