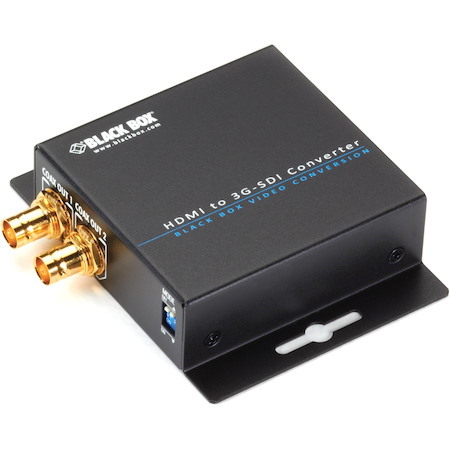

Black Box HDMI to 3G-SDI/HD-SDI Converter

  • Part: 1043166
  • Model: VSC-HDMI-SDI
$222.00

Availability

In Stock

  • Autodetects SDI standard on its 75-ohm coax outputs.
  • EDID learning for optimal source-to-screen communications.
  • Handles higher SDI bandwidth of 2.97 Gbps (3G-SDI).
  • Provides up to eight-channel audio support.
  • No software or driver installation required.
  • Easy to configure using DIP switches.
  • Wall-mountable for space-saving installation.

Ideal for professional video and broadcast engineering applications, this handy converter enables you to connect an HDMI source to a 3G-SDI, HD-SDI, or SD-SDI display. This way, you can use a consumer electronics device or a camera with HDMI output in your SDI setup.

The affordably priced device supports an array of HD video formats and provides digitally pure HDMI-to-SDI conversion, ensuring no loss in the conversion for both video and audio signaling.

Use it in a TV studio, post-production, digital cinema, or AV application where you need to show uncompressed digital video from an HDMI source on a professional SDI monitor or connect an HDMI camera to SDI switching equipment.

It also features SDI loop-out via a second coax connector. This way you can display a video on two SDI monitors, one locally and the second one in another room. Or use the loop-out to daisy-chain to additional SDI equipment.

You can also combine it in an application with our 3G-SDI/HD-SDI to HDMI Converter (VSC-SDI-HDMI) to extend HDMI over coax.
The HDMI to 3G-SDI/HD-SDI Converter processes up to eight channels of audio, including 7.1-channel or 5.1-channel audio in addition to HDMI video. It can be used with surround sound or Dolby® TrueHD audio equipment.

For both older and newer SDI interfaces, the converter processes bit rates from 270 Mbps up to 2.97 Gbps.

  • General Information
    • Manufacturer
    • Black Box Corporation
    • Manufacturer Website Address
    • http://www.blackbox.com
    • Brand Name
    • Black Box
    • Product Type
    • Signal Converter
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Functions
    • Video Conversion
    • Video Signal Format
    • NTSC
    • PAL
    • Maximum Resolution
    • 1920 x 1080
    • Maximum Frame Rate
    • 60 fps
    • Frequency Range
    • 50Hz to 60Hz
    • Maximum Data Transfer Rate
    • 23.76 Gbit/s
    • Digital Signal
    • Yes
    • HDCP Supported
    • No
  • Interfaces/Ports
    • HDMI
    • Yes
    • Number of HDMI Inputs
    • 1
    • SDI
    • Yes
    • Number of SDI Outputs
    • 2
  • Physical Characteristics
    • Form Factor
    • Wall Mountable
    • Height
    • 1.2"
    • Width
    • 3.1"
    • Depth
    • 3.3"
    • Weight (Approximate)
    • 1.70 lb
  • Miscellaneous
    • Package Contents
      • HDMI to 3G-SDI/HD-SDI Converter
      • AC Power Adapter
      • Wallmount Ears
      • Screws
      • User Manual
    • Certifications & Standards
    • CE
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
