- General Information
- Manufacturer
- Axiom Memory Solutions
- Manufacturer Website Address
- http://www.axiommemory.com
- Brand Name
- Axiom
- Product Type
- 100Gigabit Ethernet Card

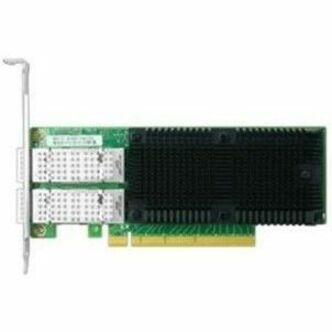

The Axiom QSFP28 PCIe 4.0 x16 100Gbs intelligent network card is designed for Servers and high-end Data Center applications. They provide simple integration into any PCI Express x16 to provide 100 Gigabit Network connectivity. Based on Xilinx Ultrascale+16nm VU3P chip solution, it offers low-latency network processing capability by utilizing the built in auxiliary CPU to perform network functions which results in reduced CPU usage and reduced power consumption in the host system.
Key Features
- P4-enabled with P4 compiler
- P4 featured programmable match-action policies
- Open vSwitch datapath offload
- SR-IOV
- DPDK, zero-copy
- SDN ready as well as supporting legacy network management systems
- High throughput monitoring & data export
- Multi purpose and adaptive fragile service offload & delivery
- Highly Programmable platform in hardware and software
- Includes Full Height and Half Height Mounting Brackets"
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Chipset Manufacturer
- Mellanox
- Chipset Model
- Connectx-5 EX
- Features
- Single Root I/O Virtualization (SR-IOV)
- Data Plane Development Kit (DPDK)
- iWARP Support
- RDMA Support
- Interfaces/Ports
- Host Interface
- PCI Express 4.0 x16
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- QSFP28
- Media & Performance
- Media Type Supported
- Optical Fiber
- Maximum Data Transfer Rate
- 100 Gbit/s
- Network & Communication
- Network Technology
- 100GBase-X
- Physical Characteristics
- Form Factor
- Plug-in Card
- Height
- 6.8"
- Width
- 0.8"
- Depth
- 2.7"
- Weight (Approximate)
- 3.84 oz
- Miscellaneous
- Package Contents
- 100Gbs Dual Port QSFP28 PCIe 4.0 x16 NIC Card - AXG100812 - TAA Compliant
- Full Height and Half Height Mounting Brackets
- Application/Usage
- Network
- Data Center
- Device Supported
- Server
- Operating System Compatibility
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux (RHEL)
- Ubuntu 20.04.1
- Ubuntu 18.04.5
- Ubuntu 22.04.2
- Ubuntu 22.04.3
- CentOS 7.9
- CentOS 7.6
- CentOS 8.2
- CentOS 8.3
- SUSE Linux Enterprise Server (SLES) 15 SP4
- SUSE Linux Enterprise Server (SLES) 12 SP5
- FreeBSD 13.2
- Neokylin 7.6
- openKylin 7.6
- TAA Compliant
- Yes
