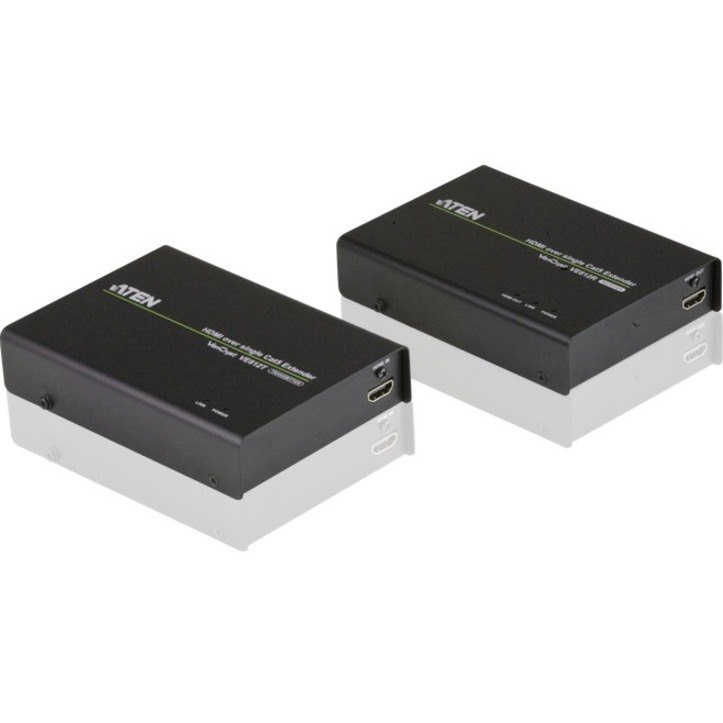

VE812
HDMI over Single Cat 5 Extender
The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Line
- VanCryst
- Product Type
- Video Extender Transmitter
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Maximum Operating Distance
- 328.08 ft
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI Inputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 5e
- Physical Characteristics
- Product Material
- Metal
- Transmitter Height
- 1.18"
- Transmitter Width
- 4.06"
- Length
- 5.6"
- Transmitter Weight (Approximate)
- 14.11 oz
- Miscellaneous
- Country of Origin
- Taiwan
