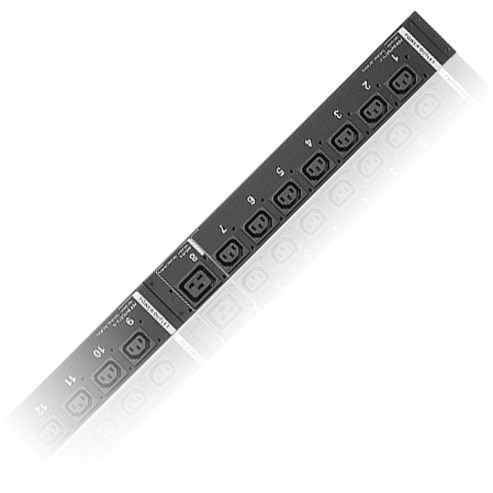

ATEN eco PDU PE8324 24-Outlets PDU

  • Part: 3455487
  • Model: PE8324B
$1,037.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • ATEN Technology, Inc
    • Manufacturer Website Address
    • http://www.aten.com/us/en/
    • Brand Name
    • ATEN
    • Product Line
    • eco PDU
    • Packaged Quantity
    • 1
    • Product Type
    • PDU

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence“s proactive overload protection, which automatically powers off the last outlet that caused the current overload.

NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center“s health environment via sensors.

NRGence eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.

  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Plug/Connector Type
    • NEMA L6-30P
    • Plug/Connector Detail
    • 1 x NEMA L6-30P
    • Receptacle Type
    • IEC 60320 C13
    • IEC 60320 C19
    • Receptacle Detail
    • 21 x IEC 60320 C13
    • 3 x IEC 60320 C19
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage
    • 120 V AC
    • 230 V AC
    • Input Voltage Range
    • 120 V AC - 230 V AC
    • Output Voltage
    • 120 V AC
    • 230 V AC
    • Power Rating (VA)
    • 4992 VA
    • Input Current
    • 30 A
  • Management
    • Management
      • TCP/IP
      • UDP
      • HTTP
      • HTTPS
      • SSL
      • DHCP
      • SMTP
      • NTP
      • DNS
      • Auto Sense
      • Ping
      • SNMP V1,V2&V3
      • Aaccount/password security
      • IP/MAC filter
      • 128 bit SSL
      • RADIOUS
      • eco Sensors
      • Browser ( IE, Firefox, Chrome, Safari )
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
  • Physical Characteristics
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 0U
    • Height
    • 69.9"
    • Width
    • 2.6"
    • Depth
    • 1.7"
    • Weight (Approximate)
    • 14.33 lb
  • Miscellaneous
    • Package Contents
      • eco PDU PE8324 24-Outlets PDU
      • 1 x Standard Rack Mount Kit
      • 1 x CD-ROM (Manual, eco Sensors Software)
      • 1 x User Instructions
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Restriction of Hazardous Substances (RoHS)
