- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus ROG
- Product Line
- Strix
- Product Type
- Graphic Card

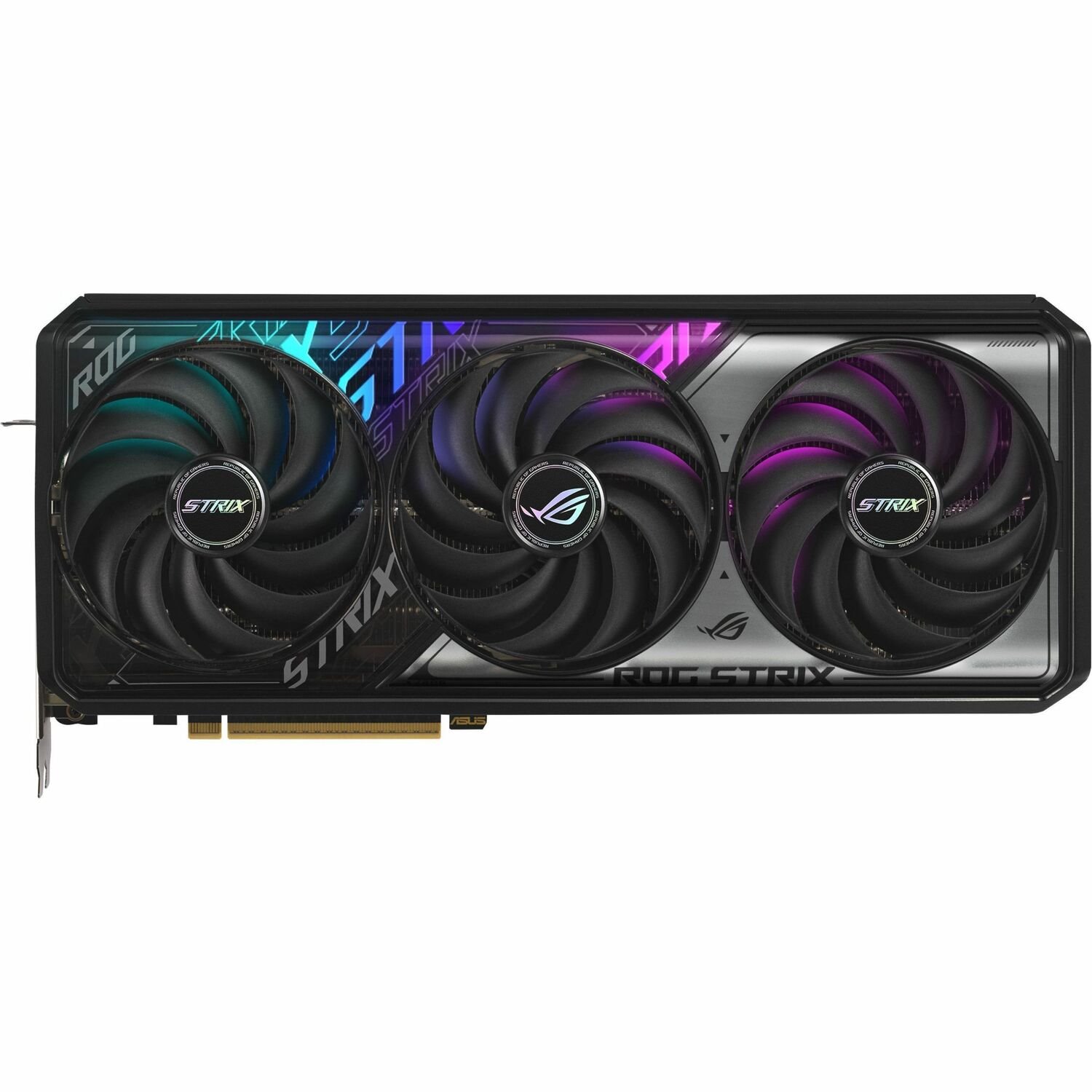

ROG Strix GeForce RTX™ 5070 12GB GDDR7 OC Edition
The ROG Strix GeForce RTX™ 5070 OC Edition 12GB GDDR7 with advanced cooling system provides you premium power delivery.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 3.2-slot design:massive fin array optimized for airflow from the three Axial-tech fans
- Axial-tech fanshave been scaled up to propel 31% more air through the card to reach higher performance.
- 0dB technologylets you enjoy light gaming in relative silence
- MaxContact designensures efficient heat transfer, providing a premium performance
- Phase-change GPU thermal padhelps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability.
- Premium power deliverywith digital power control and 15K caps ensure high performance.
- Protective PCB Coatingenvelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
- Aura Syncfeatures Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization.
- GPU Tweak IIIsoftware provides intuitive performance tweaking, advanced thermal control and system monitoring
ROG Strix GeForce RTX™ 5070 FIND YOUR EDGE
The premium performance ROG Strix GeForce RTX 5070, featuring advanced cooling system with axial-tech fan, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
- Warranty
- Limited Warranty
- 36 Month
- Technical Information
- API Supported
- OpenGL 4.6
- Number of Monitors Supported
- 4
- Features
- Triple-fan Cooler
- Ray Tracing
- Maximum Digital Display Resolution
- 7680 x 4320
- CUDA Cores
- 6144
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- NVIDIA
- Chipset Line
- GeForce
- Chipset Series
- RTX
- Chipset Model
- RTX 5070
- GPU Boost Clock
- 2.69 GHz
- Memory
- Standard Memory
- 12 GB
- Memory Technology
- GDDR7
- Bus Width
- 192 bit
- Interfaces/Ports
- Host Interface
- PCI Express 5.0
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 3
- HDMI
- Yes
- Number of HDMI Outputs
- 2
- Power Description
- Power Supply Wattage
- 750 W
- Power Connector
- 1x 16-pin
- Physical Characteristics
- Slot Space Required
- Triple
- Form Factor
- Plug-in Card
- Cooler Type
- Fan Cooler
- Height
- 2.5"
- Width
- 5.8"
- Length
- 13.1"
- Miscellaneous
- Package Contents
- Strix GeForce RTX 5070 12GB GDDR7 OC Edition Graphic Card
- 1 x Speedsetup Manual
- 1 x ROG Graphics Card Holder
- 1 x ROG Velcro Hook & Loop
- 1 x ROG Magnet
- 1 x ROG PCB Ruler
- 1 x Thank You Card
- 1 x Adapter Cable (1 to 2)
- Platform Supported
- PC
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
