- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Symmetra
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace, optional on-site warranties available, optional extended warranties available
- Technical Information
- Plug/Connector Type
- NEMA L6-30P 30A
- Receptacle Type
- NEMA L6-30P 30A
- Receptacle Detail
- 12 x NEMA 5-20R
- 2 x NEMA L6-20R
- Number of Battery & Surge Outlets
- 14
- Bypass Switch
- Automatic & Manual
- Emergency Power OFF
- Yes
- Cord Length
- 10 ft
- Power Description
- Load Capacity (VA)
- 6000 VA
- Load Capacity (Watt)
- 4200 W
- Input Voltage
- 208 V
- Output Voltage
- 120 V AC
- 208 V AC
- Waveform Type
- Sine Wave
- Management
- Network Management
- SNMP Manageable
- Alarm
- On Battery
- Low Battery
- Configurable Delay
- Battery Management
- Intelligent Battery Management
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- Total Number of Expansion Slots
- 1
- Battery Information
- Battery Characteristics
- Spill-proof, Maintenance-free
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 12.30 Minute
- Backup/Run Time (Half Load)
- 29.10 Minute
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 113°F (45°C)
- Thermal Dissipation
- 741.18 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 17.5"
- Width
- 19"
- Depth
- 28.7"
- Rack Height
- 10U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 389.82 lb
- Miscellaneous
- Package Contents

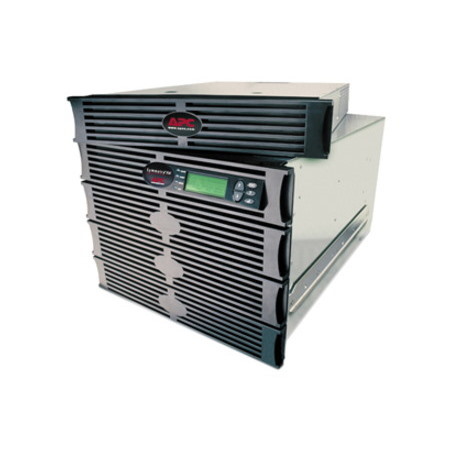

- Symmetra RM 6kVA UPS
- CD with software
- Rack mounting brackets
- Rack mounting support rails
- User manual
- Additional Information
- Automatic restart of loads after UPS shutdown
- Cold-start capable
- Configurable for N+1 internal redundancy
- Field-replaceable power distribution panel
- Generator Compatible
- Hot-swappable intelligence modules
- Hot-swappable power modules
- InfraStruXure Manager Compatible
- Plug-and-Play external batteries
- Programmable Frequency
- Scalable Power Capacity
- User-replaceable intelligence modules
- User-replaceable power modules
- Certifications & Standards
- CSA
- Green Premium
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH6K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH6K6RMT-P1KIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036279&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036279&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
- California Proposition 65 Warning
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- REACH free of SVHC
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
