- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Back-UPS
- Packaged Quantity
- 1 Each
- Product Type
- Standby UPS

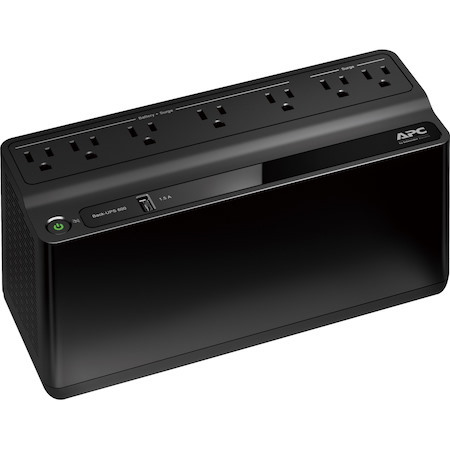

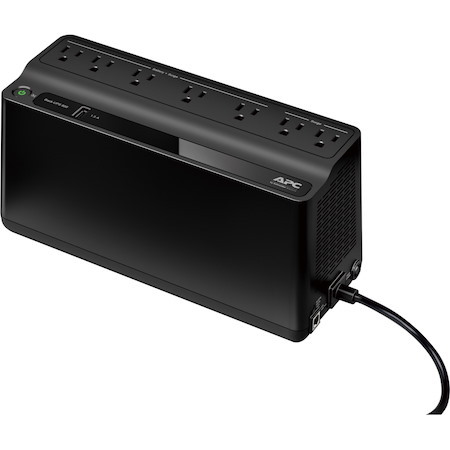

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 600VA floor/wall mount UPS has 7 total outlets, 5 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 490 Joules. It has one USB port for smart charging of personal devices. This battery backup is designed to power wireless home networking devices (router and modem) for hours during utility outages so you can stay connected and productive. Connect and charge mobile devices via the 1 USB port provides a maximum of 1.5A . The USB port will provide power when the UPS is both on utility and battery power. This computer backup offers lifetime guaranteed surge protection with a $75,000 equipment protection policy. The side of this 600VA UPS includes 2 keyhole sockets to easily mount the battery backup on a wall in hard to reach installations. The outlets are arranged with spaces to accommodate both average sized power plugs and transformer block power plugs. This UPS has a 3-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. Package Contains UPS, user manual
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace
- Directly Connected Equipment Guarantee
- $75000 Lifetime
- Technical Information
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- USB
- Receptacle Detail
- 7 x NEMA 5-15R
- 1 x USB
- Number of Surge-only Outlets
- 2
- Transfer Time
- 6 ms
- Application/Usage
- Gaming Console
- Security System
- Television
- Cable Box/DVR
- Wireless Router
- Modem
- Wi-Fi Router
- IOT Device
- Network
- Electronic
- Computer
- Power Description
- Load Capacity
- 600 VA/330 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 92 V AC - 139 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Stepped Sine Wave
- Surge Energy Rating
- 490 J
- Management
- Alarm
- On Battery
- Low Battery
- Overload
- Controls/Indicators
- Status Indicators
LED Status Display:
- On Line
- On Battery
- Replace Battery
- Overload
- Battery Information
- Battery Characteristics
- Maintenance-free, Sealed, Leak-proof
- Battery Chemistry
- Lead Acid
- Battery Capacity
- 237.6 kJ
- Backup/Run Time (Full Load)
- 3.20 Minute
- Backup/Run Time (Half Load)
- 11.80 Minute
- Typical Battery Recharge Time
- 10 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 9842.52 ft
- Maximum Storage Elevation
- 49212.60 ft
- Storage Relative Humidity
- 0% - 95%
- Sound Emission
- 35 dB(A)
- Thermal Dissipation
- 4.69 W
- Physical Characteristics
- Height
- 5.5"
- Width
- 10.8"
- Depth
- 4.1"
- Form Factor
- Tower
- Weight (Approximate)
- 7.69 lb
- Miscellaneous
- Package Contents
- Back-UPS 600VA Tower UPS
- User manual
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- RoHS
- REACH
- CEC
